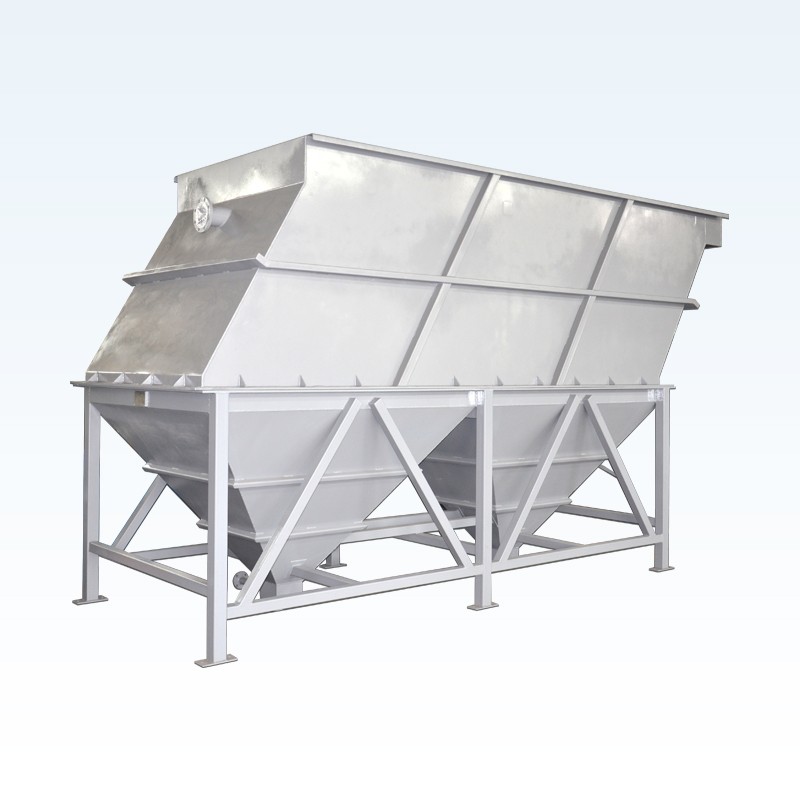

Lamella Clarifier

Lamella Clarifier

The Lamella Clarifier delivers superior solid-liquid separation in a remarkably compact footprint. By utilizing inclined plate technology, it dramatically increases settling efficiency and throughput within a minimal space. This proven solution offers effective clarification and thickening for diverse water and wastewater applications, ensuring consistent performance with low energy consumption.

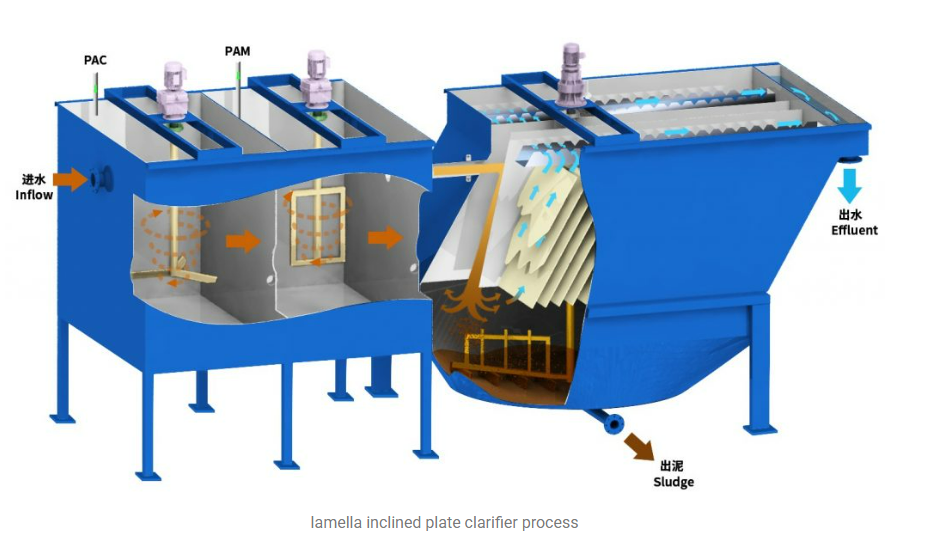

Working Principle

It is designed to remove particles from liquids. The theory is put forward on the basis of shallow tank, which tells the settling efficiency of sedimentation tank is only related to surface area. The settling area is the total area of the inclined plates projected on a horizontal surface. This reduces the footprint of lamella settlers by about 90% as compared to conventional clarifiers and the efficiency.

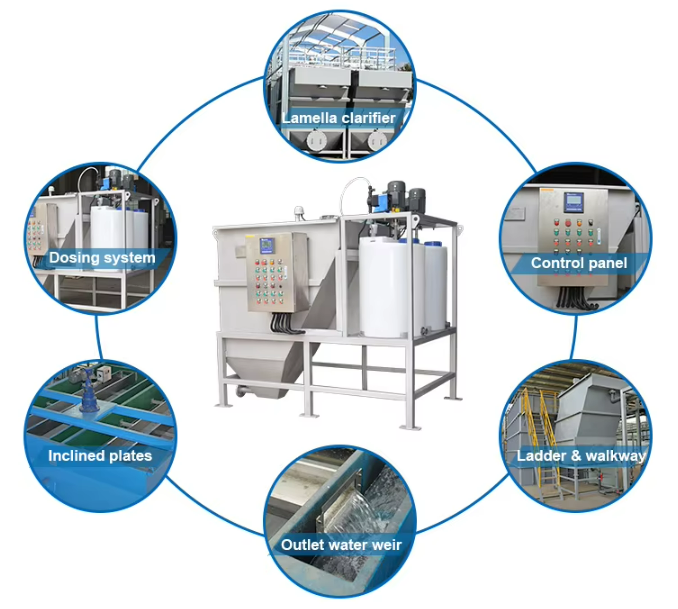

Features

1. Maximized sedimentation area within limited footprint.

2. High-rate clarifier for high SS water (grit, clay, lime & mental particals).

3. Circular sludge hopper with sludge scraper to reduce total transportation height.

4. Indoor or outdoor layout (environmental temperature should be over 0°C).

5. Apply to automatic & continious operation.

6. Design life: Carbon steel material: >10years; Stainless steel material: >20years.

Advantage

1. Higher eficiency, smaller footprint: inclined plates extended to 1.5m,separation efficiencyimproved (higher 1.5 ~ 2.0 times) comparing with radial flow clarifier and vertical clarifier andsave 80% of area.

2. Excellent hydraulic conditions: no hydraulic corner and vortex, better precipitation performance.

3. Inclined plates Chokeless : plates are of angle 60 degrees, spacing between 80 ~ 100 mm, back-washing device used.

4. Strong and durable: Inclined plates are breakless, collapseless. Adopt 6mm hard PVC board or 8mm high quality PP board as special separation plate, module embedded installation, highstrength, easy disassembling and maintenance.

5. Sludge discharge smoothly : no dead angle, sludge pump is recommended.

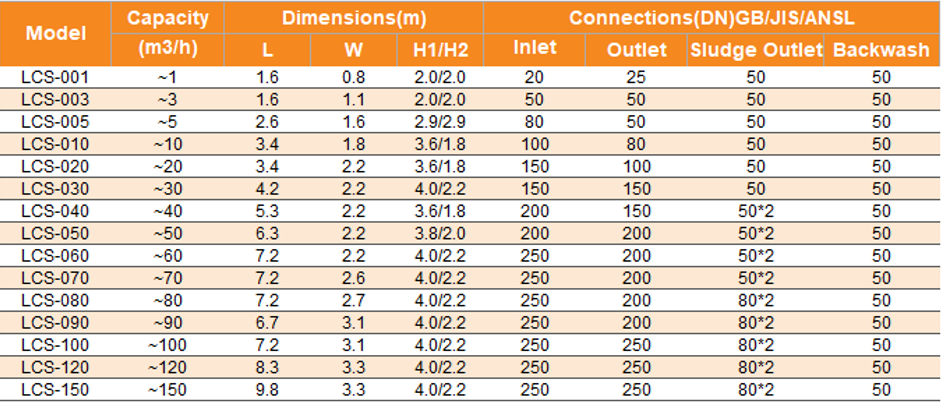

Technical Parameters
